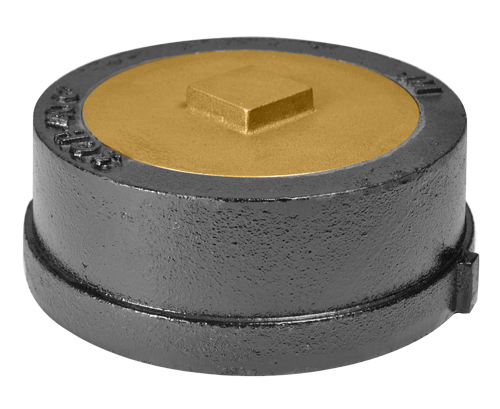

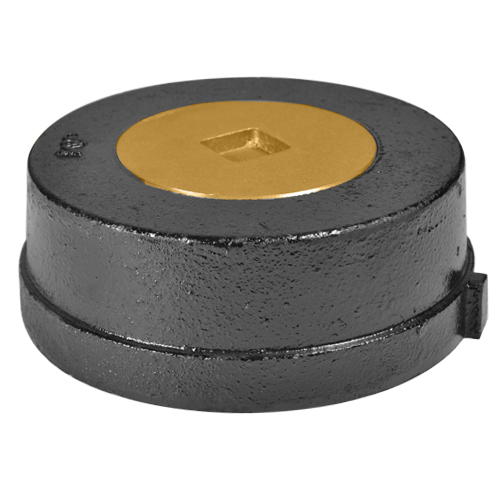

| STANDARD BODY CLEANOUTS |
| With Southern Code Brass Plugs |
|
| Available with either low raised hollow |
|
| square head or countersunk brass plugs. |
|
|
|
|
|
| ITEM No. |
PLUG |
PIPE SIZE |
PLUG SIZE |
| 182 |
Raised |
2" |
1-1/2" |
| 182CS |
Countersunk |
2" |
1-1/2" |
| 183 |
Raised |
3" |
2-1/2" |
| 183CS |
Countersunk |
3" |
2-1/2" |
| 184 |
Raised |
4" |
3" |
| 184CS |
Countersunk |
4" |
3" |
| 185 |
Raised |
4" |
3-1/2" |
| 185CS |
Countersunk |
4" |
3-1/2" |
| 186 |
Raised |
5" |
4" |
| 186CS |
Countersunk |
5" |
4" |
| 187 |
Raised |
6" |
5" |
| 187CS |
Countersunk |
6" |
5" |
| 188 |
Raised |
8" |
6" |
| 188CS |
Countersunk |
8" |
6" |
| 189 |
Raised |
10" |
6" |
| 189CS |
Countersunk |
10" |
6" |
|
| |
|
| |
|
| |

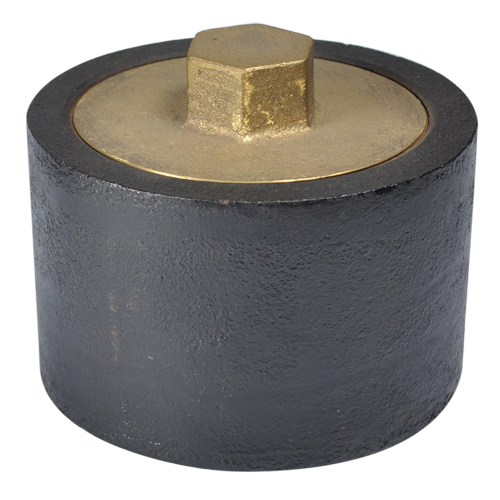

| STANDARD BODY CLEANOUTS |
| With Ohio & New York Code Brass Plugs |
| Available with either 1"raised solid hex |
|
| or countersunk brass plugs |
|
|
|
|
|
| ITEM No. |
PLUG |
PIPE SIZE |
PLUG SIZE |
| 161 |
Raised |
2" |
1-1/2" |
| 161CS |
Countersunk |
2" |
1-1/2" |
| 162 |
Raised |
3" |
2-1/2" |
| 162CS |
Countersunk |
3" |
2-1/2" |
| 163 |
Raised |
4" |
3" |
| 163CS |
Countersunk |
4" |
3" |
| 164 |
Raised |
4" |
3-1/2" |
| 164CS |
Countersunk |
4" |
3-1/2" |
| 165 |
Raised |
5" |
4" |
| 165CS |
Countersunk |
5" |
4" |
| 166 |
Raised |
6" |
5" |
| 166CS |
Countersunk |
6" |
5" |
| 167 |
Raised |
8" |
6" |
| 167CS |
Countersunk |
8" |
6" |
| 168 |
Raised |
10" |
6" |
| 168CS |
Countersunk |
10" |
6" |
|
| |
|
| |
|
| |
| EXTRA HEAVY BODY CLEANOUTS |
| With Southern Code Brass Plugs |
|
| Available with either low raised hollow |
|
| square head or countersunk brass plugs. |
|
|
|
|
|
| ITEM No. |
PLUG |
PIPE SIZE |
PLUG SIZE |
| 182X |
Raised |
2" |
1-1/2" |
| 182XCS |
Countersunk |
2" |
1-1/2" |
| 183X |
Raised |
3" |
2-1/2" |
| 183XCS |
Countersunk |
3" |
2-1/2" |
| 184X |
Raised |
4" |
3-1/2" |
| 184XCS |
Countersunk |
4" |
3-1/2" |
| 185X |
Raised |
5" |
4" |
| 185XCS |
Countersunk |
5" |
4" |
| 186X |
Raised |
6" |
5" |
| 186XCS |
Countersunk |
6" |
5" |
|
| |
|
| |
|
| |
| EXTRA HEAVY BODY CLEANOUTS |
| With Ohio & New York Code Brass Plugs |
|
| Available with either 1" raised solid |
|
| hex or countersunk brass plugs. |
|
|
|
|
|
|
| ITEM No. |
PLUG |
PIPE SIZE |
PLUG SIZE |
| 192X |
Raised |
2" |
1-1/2" |
| 192XCS |
Countersunk |
2" |
1-1/2" |
| 193X |
Raised |
3" |
2-1/2" |
| 193XCS |
Countersunk |
3" |
2-1/2" |
| 194X |
Raised |
4" |
3-1/2" |
| 194XCS |
Countersunk |
4" |
3-1/2" |
| 195X |
Raised |
5" |
4" |
| 195XCS |
Countersunk |
5" |
4" |
| 196X |
Raised |
6" |
5" |
| 196XCS |
Countersunk |
6" |
5" |
|
| |
|
| |
|
| |

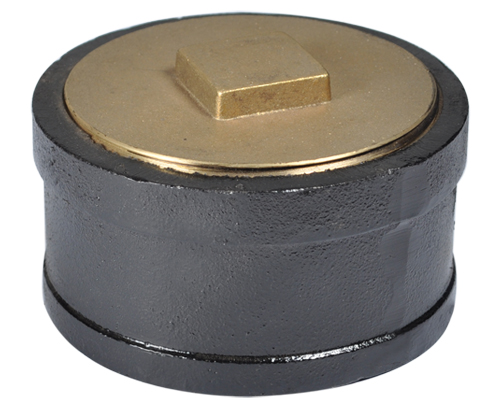

| NO HUB CLEANOUTS |
|
|
| With Southern Code Brass Plugs |
|
| Available with low raised hollow square head. |
|
|
|
|
|
| ITEM No. |
PLUG |
PIPE SIZE |
PLUG SIZE |
| 182NH |
Raised |
2" |
1-1/2" |
| 183NH |
Raised |
3" |
2-1/2" |
| 184NH |
Raised |
4" |
3-1/2" |
| 186NH |
Raised |
5" |
4" |
| 187NH |
Raised |
6" |
5" |
| 188NH |
Raised |
8" |
6" |
|
| |
|
| |
|
| |
| PANELLA CLEANOUT |
|
|
| Can be installed with multiple ring compression gasket on service |
| weight or extra heavy pipe. Available with either low raised hollow |
| square head or countersunk brass plugs. |
|
|
|
|
|
|
|
| ITEM No. |
PLUG |
PIPE SIZE |
PLUG SIZE |
|
| 183PA |
Raised |
3" |
3" |
|
| 183PACS |
Countersunk |
3" |
3" |
|
| 185PA |
Raised |
4" |
3-1/2" |
|
| 185PACS |
Countersunk |
4" |
3-1/2" |
|
| 187PA |
Raised |
6" |
4" |
|
| 187PACS |
Countersunk |
6" |
4" |
|
|
| |
|
| |
|
| |
| PANELLA CLEANOUT |
|
| Can be installed with multiple ring compression gasket on |
| extra heavy pipe.Cleanouts with full opening.Available with either |
| low raised hollow square head or countersunk brass plugs. |
|
|
|
|
| ITEM No. |
PIPE |
PLUG SIZE |
|
| 185PA4 |
4" SCH. 40 |
3-1/2" |
|
| 185PACS4 |
4" SCH. 40 |
3-1/2" |
|
| 187PA4 |
6" SCH. 40 |
5-1/2" |
|
| 187PACS4 |
6" SCH. 40 |
5-1/2" |
|
|
| |
|
| |
|
| |

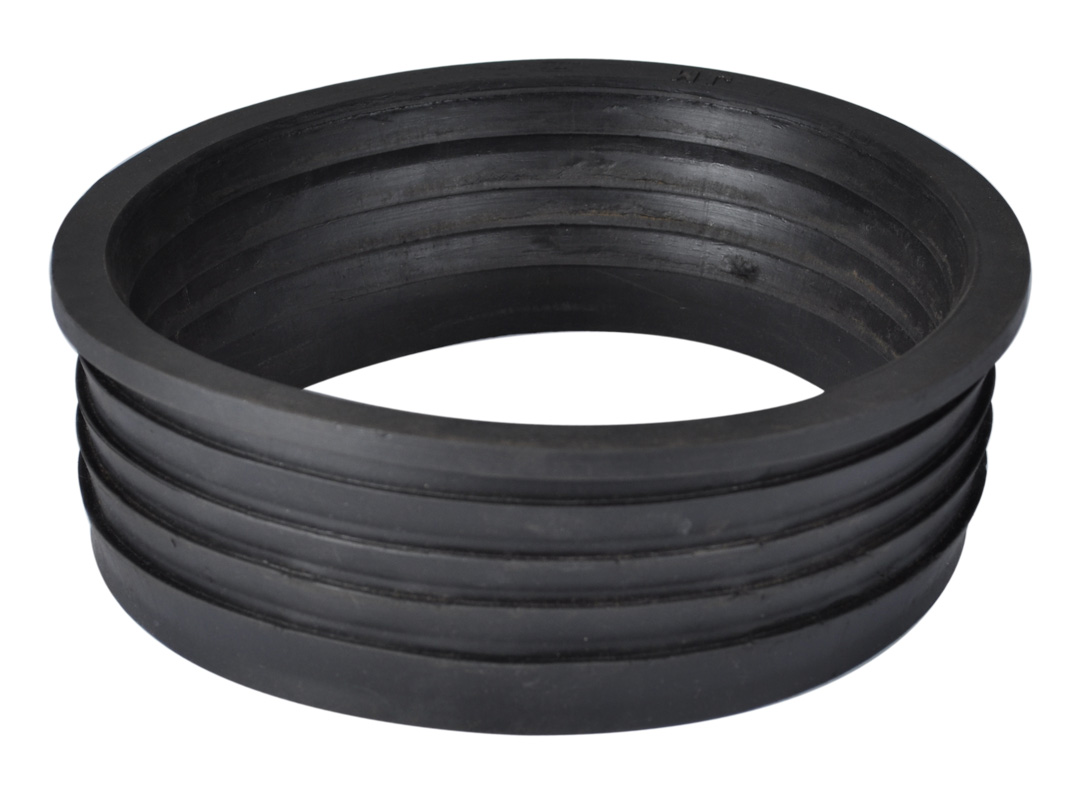

| PANELLA GASKET |
| Available in Neoprene |
|
|
| ITEM No. |
SIZE |
| SVG2 |
2" |
| SVG3 |
3" |
| SVG4 |
4" |
| SVG6 |
6" |
|
| |
|
| |
|
| |
| PANELLA THIN GASKET |
| Available in Neoprene Material. |
|
| For SCH.40 Pipe |
|
| ITEM No. |
SIZE |
|
| SVG40 |
4" |
|
| SVG60 |
6" |
|
|
| |
|
| |
|
| |

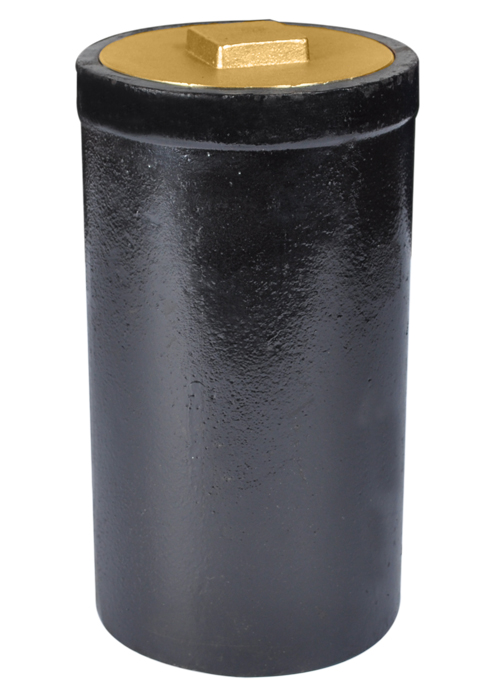

| EXTENSION CLEANOUTS |
|
| Heavy iron body, extension cleanouts |
|
| with full opening. Fits standard or heavy |
|
| pipe. Available with either low raised hollow |
|
| square head or countersunk brass plugs. |
|
|
|
|
|
| ITEM No. |
PLUG |
PIPE SIZE |
LENGTH |
| 48 |
Raised |
4" |
8" |
| 48CS |
Countersunk |
4" |
8" |
| 412 |
Raised |
4" |
12" |
| 412CS |
Countersunk |
4" |
12" |
|
| |
|
| |
|
| |

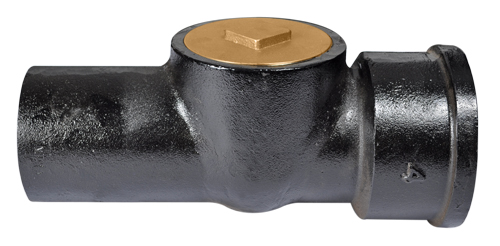

| MANHOFF FITTINGS |
|
|
| For connecting steel pipe. Can be |
|
| installed as either spigots or hubs. |
|
|
|
|
|
| ITEM No. |
SPIGOT SIZE |
HUB SIZE |
PLUG SIZE |
| 1241 |
4" |
3" |
1-1/2" |
| 1242 |
4" |
3" |
2" |
|
| |
|
| |
|
| |

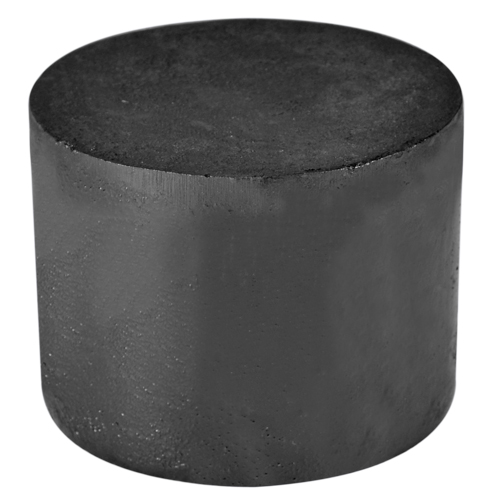

| BLIND FERRULES |
|
| SOIL PIPE PLUGS |
|
| For Hub End of Soil Pipe. |
|
|
|
|
| ITEM No. |
PIPE SIZE |
| 1262 |
2" |
| 1263 |
3" |
| 1264 |
4" |
| 1265 |
5" |
| 1266 |
6" |
|
| |
|
| |
|
| |

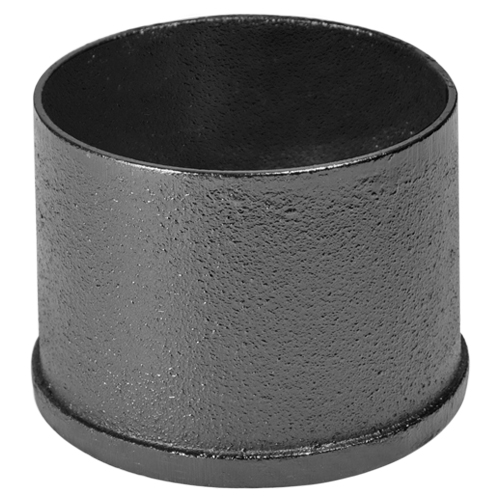

| CAST IRON DRIVE FERRULES |
|
| For Lead Pipe |
|
|
|
|
|
| ITEM No. |
PIPE SIZE |
HEIGHT |
| 574 |
4" |
3" |
| 5742 |
4" |
2" |
|
| |
|
| |
|
| |
| NO HUB TEST TEE |
| Low raised hollow square head brass plug |
|
|
|
|
|
|
| ITEM No. |
PIPE SIZE |
PLUG SIZE |
| S22-2BP |
2" |
2" |
| S22-3BP |
3" |
3" |
| S22-4BP |
4" |
4" |
| S22-5BP |
5" |
5" |
| S22-6BP |
6" |
6" |
|
| |
|
| |
|
| |

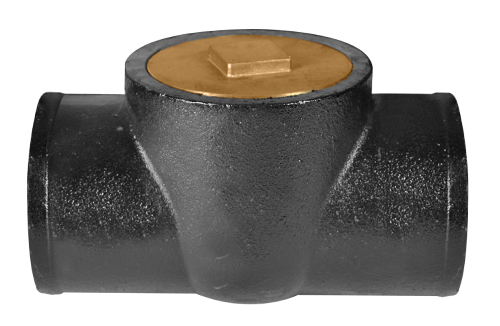

| PLAIN END TEST & CLEANOUT TEES |
| Low raised hollow square head brass plug. |
| Available with any style plug upon request. |
|
|
|
|
|
|
| ITEM No. |
PIPE SIZE |
PLUG SIZE |
| 1502 |
2" |
2" |
| 1503 |
3" |
3" |
| 1504 |
4" |
3-1/2" |
| 1504X |
4" |
4" |
| 1506 |
6" |
4" |
|
| |
|
| |
