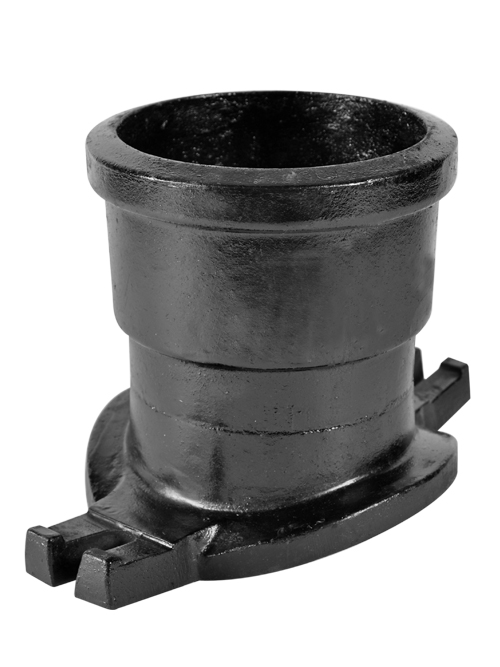

| HUB SADDLE TEES |
| Supplied with U-bolts |
|
|
| ITEM No. |
SIZE |
| 840-4 |
4" x 2" |
| 840-5 |
4" x 3" |
| 840-6 |
4" x 4" |
| 840-7 |
5" x 2" |
| 840-8 |
5" x 3" |
| 840-9 |
5" x 4" |
| 840-10 |
5" x 5" |
| 840-11 |
6" x 2" |
| 840-12 |
6" x 3" |
| 840-13 |
6" x 4" |
|
| |
|
| |
|
| |

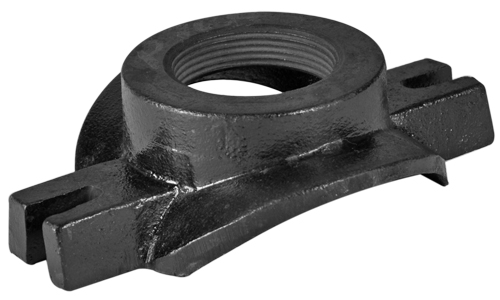

| TAPPED SADDLE TEES |
| Supplied with U-bolts |
|
|
| ITEM No. |
SIZE |
| 840T-1 |
2" x 1-1/2" |
| 840T-2 |
2" x 2" |
| 840T-3 |
3" x 1-1/2" |
| 840T-4 |
3" x 2" |
| 840T-5 |
4" x 1-1/2" |
| 840T-6 |
4" x 2" |
| 840T-7 |
5" x 1-1/2" |
| 840T-8 |
5" x 2" |
| 840T-9 |
6" x 1-1/2" |
| 840T-10 |
6" x 2" |
|
| |
|
| |
|
| |

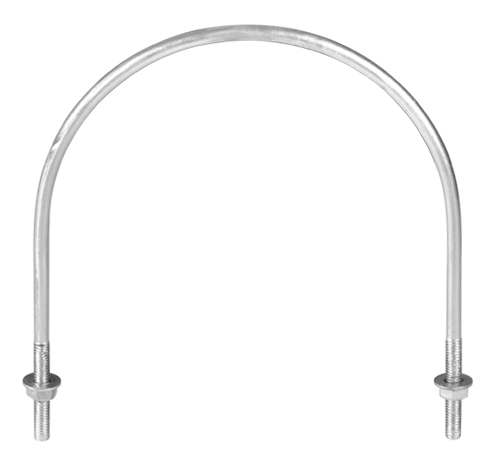

| U-BOLT ASSEMBLIES |
|
|
| ITEM No. |
SIZE |
| 840-2U |
2" |
| 840-3U |
3" |
| 840-4U |
4" |
| 840-5U |
5" |
| 840-6U |
6" |
|
| |
|
|
|
| |
| GASKET FOR SADDLE FITTINGS AND REPAIR PLATES |
| Made of heat and oil resistant Neoprene sponge. Good |
| compressibility assures a tight joint on uneven surfaces. |
|
|
| ITEM No. |
SIZE |
| 845 |
8" x 8" x 1/2" |
|
| |
|
| |
|
| |

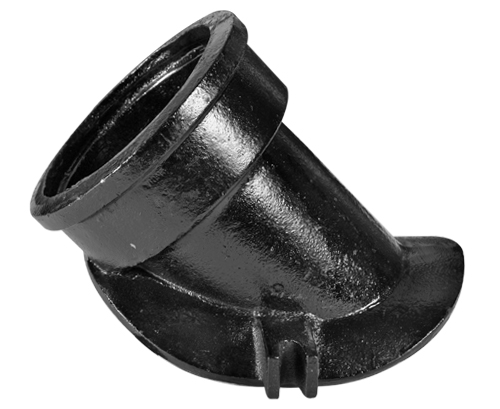

| HUB SADDLE Y |
| Supplied with U-bolts |
|
|
| ITEM No. |
SIZE |
| 850-4 |
4" x 2" |
| 850-5 |
4" x 3" |
| 850-6 |
4" x 4" |
| 850-11 |
6" x 2" |
| 850-12 |
6" x 3" |
| 850-13 |
6" x 4" |
|
| |
|
| |
|
| |

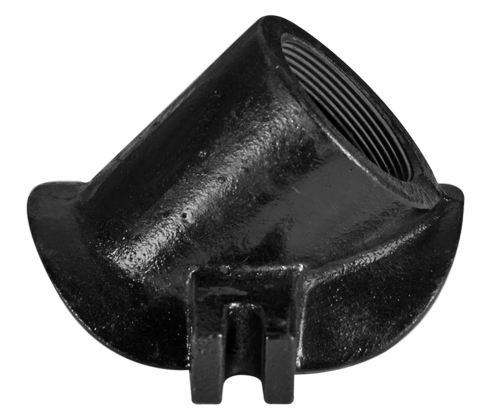

| TAPPED SADDLE Y |
| Supplied with U-bolts |
|
|
| ITEM No. |
SIZE |
| 850T-1 |
4" x 1-1/2" |
| 850T-2 |
4" x 2" |
|
| |
|
| |
|
| |
| CAST IRON HUB SADDLE FITTINGS |
| FOR SEWER PIPES |
|
| The hubs are made of cast iron and the strap,studs,washers |
| and nuts are made of stainless steel for corrosion resistance |
| in underground aplications.The saddle's tubular rubber |
| flange gasket is resilient enough to seal against minor |
| pipe surface irregularities,yet sturdy enough to resist |
| expansion due to temperature changes or earth movement. |
|
|
|
| ITEM No. |
SIZE |
|
| 840-18 |
8" x 4" Tee |
|
| 850-18 |
8" x 4" Wye |
|
|
| |
|
| |
|
| |

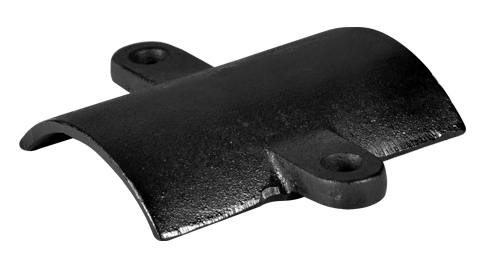

| REPAIR PLATES |
| For repairing holes and cracks etc. in soil pipe. |
| Supplied with U-bolts. |
|
|
| ITEM No. |
SIZE |
| 982 |
2" |
| 983 |
3" |
| 984 |
4" |
| 985 |
5" |
| 986 |
6" |
|
| |
|
| |
