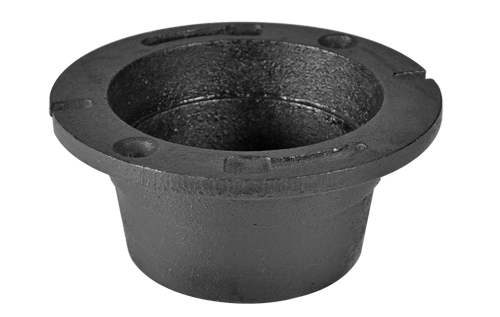

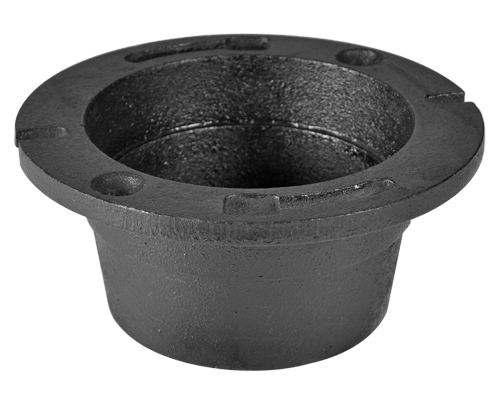

| STANDARD CAST IRON CLOSET FLANGES |
|
| Slotted and notched to adapt to all installations. |
| Caulk Connection. |
|
|
|
|
|
| ITEM No. |
SIZE |
|
| 949 |
4" x 1" |
|
| 950 |
4" x 1-1/2" |
|
| 951 |
4" x 2" |
|
| 952 |
4" x 2-1/2" |
|
| 953 |
4" x 3" |
|
| 954 |
4" x 4" |
|
| 955 |
4" x 5" |
|
| 956 |
4" x 6" |
|
| 958 |
4" x 7" |
|
| 959 |
4" x 9" |
|
|
| |
|
| |
|
| |

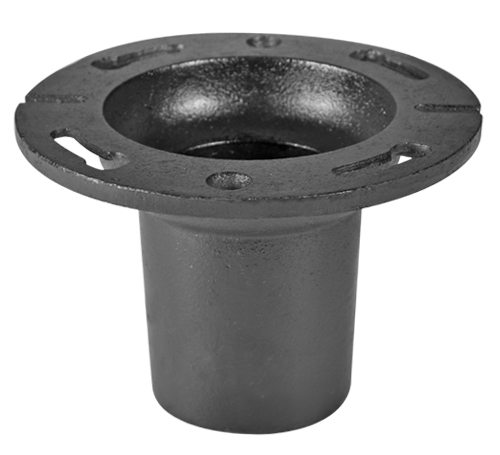

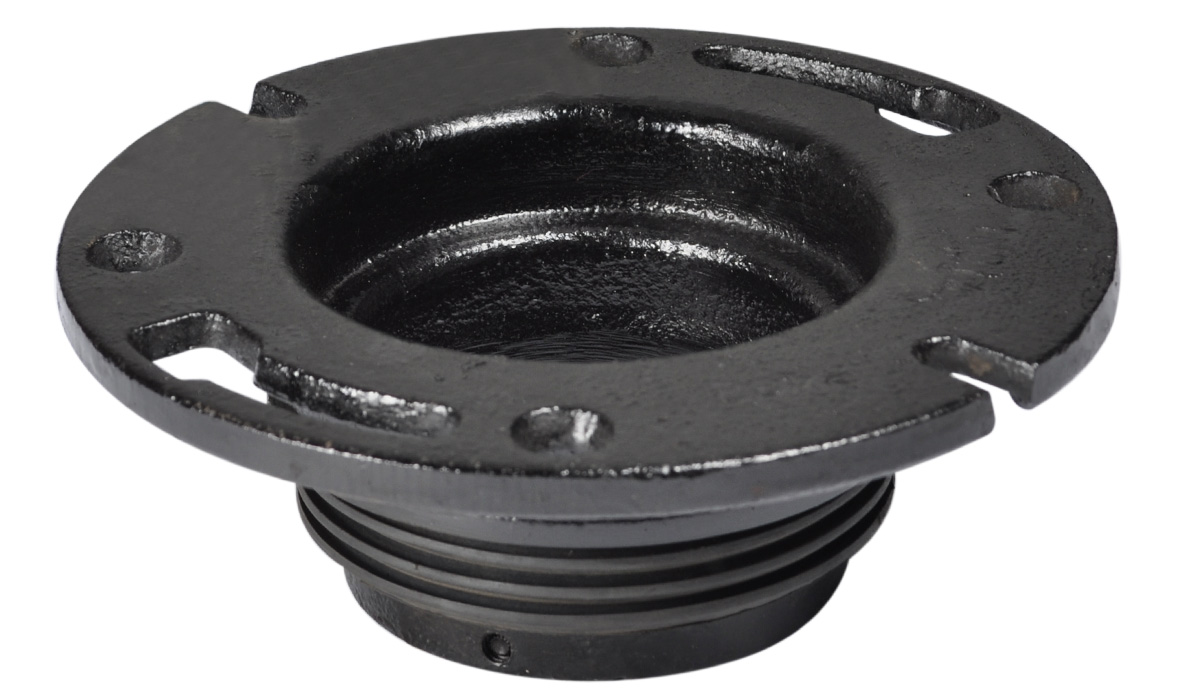

| EASY SET INSIDE FIT CLOSET FLANGES |
| Can be installed in the I.D. of 4" pipe. |
|
|
| ITEM No. |
SIZE |
| 960 |
4" x 2" |
|
| |
|
| |
|
| |
| EASY TO SET |
|
|
| CLOSET FLANGES |
|
| Simple installation. Eliminates need for Lead & Oakum. |
| Recommended for any normal installation |
|
|
|
|
| ITEM No. |
SIZE |
|
| 966 |
3" x 2" |
|
| 967 |
4" x 2" |
|
| 968 |
4" x 3" |
|
| 969 |
4" x 4" |
|
| 970 |
4" x 6" |
|
|
| |
|
| |
|
| |

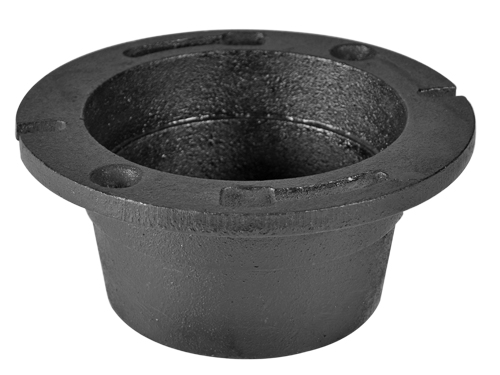

| EXTRA HEAVY CAST IRON |
| CLOSET FLANGES |
| Slotted and notched. Designed for |
| extra heavy pipe. Caulk connection. |
|
|
| ITEM No. |
SIZE |
| 992 |
4" x 2-1/2" - 5" I.D. |
| 994 |
4" x 4" - 5" I.D. |
| 996 |
4" x 6" - 5" I.D. |
|
| |
|
| |
|
| |

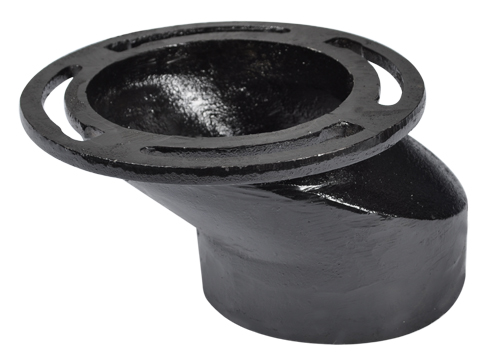

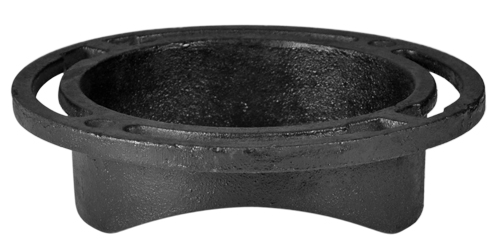

| CAST IRON 4-WAY 3/4" OFFSET |
CLOSET FLANGES |
| Offsets to front or to back.Caulk connection. |
|
|
|
| ITEM No. |
SIZE |
|
| 1910 |
4" x 2" |
|
| 1912 |
4" x 2-1/2" |
|
| 1913 |
4" x 3" |
|
| 1914 |
4" x 4" |
|
|
| |
|
| |
|
| |
| CAST IRON 4-WAY ADJUSTABLE OFFSET |
| CLOSET FLANGES |
|
| Caulk connection |
|
|
|
|
| ITEM No. |
SIZE |
TYPE |
| 1915 |
4" x 2" Offset |
Caulk |
| 1916 |
4" x 2" Offset |
No Hub |
|
| |
|
| |
|
| |

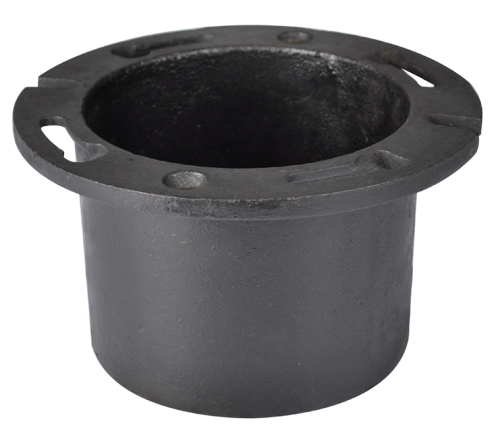

| CAST IRON NO HUB CLOSET FLANGES |
|
| Can be used with no hub soil pipe or in conventional soil |
| pipe hubs with neoprene slip-type gasket |
|
|
|
| ITEM No. |
SIZE |
|
| 2383 |
3" x 3" |
|
| 2384 |
3" x 4" |
|
| 2385 |
3" x 5" |
|
| 2393 |
4" x 3" |
|
| 2394 |
4" x 4" |
|
| 2395 |
4" x 5" |
|
|
| |
|
| |
|
| |
| CAST IRON REDUCING |
| CLOSET FLANGES |
|
|
| ITEM No. |
SIZE |
| 957 |
4" x 3 "x 3" Reducing |
|
| |
|
| |
|
| |

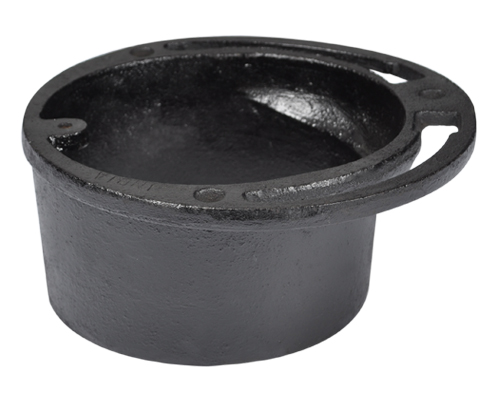

| CAST IRON 3/4" CUTOUT |
| CLOSET FLANGES |
| WITH CAULK CONNECTION |
| |
|
| ITEM No. |
SIZE |
| 961 |
4" x 2" |
|
| |
|
| |
|
| |

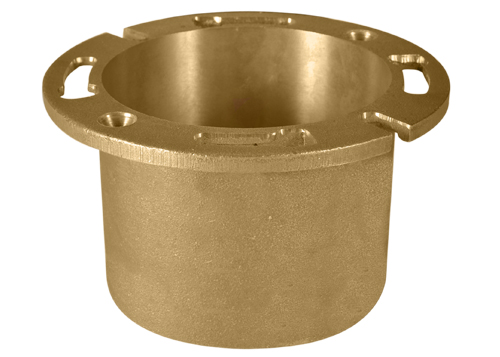

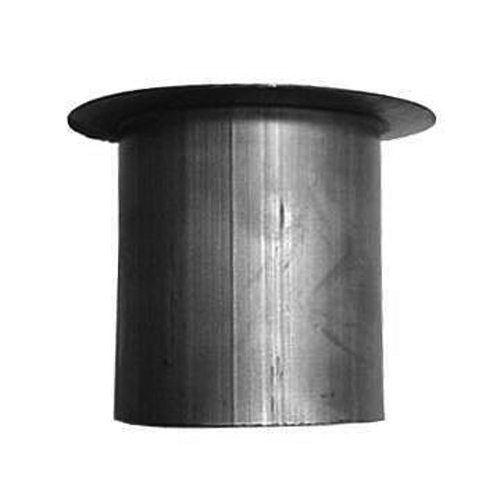

| LEAD BEND REPAIR COLLAR |
|
| For repairing lead bends corroded at the floor. |
|
| Saves the plumber time and expense and adds |
|
| years of life to an old bend. Gives the necessary |
|
| extension to a lead bend when a new floor is laid in a bathroom |
| |
|
|
|
| ITEM No. |
SIZE |
|
| 5140 |
4" x 4" - 5" I.D. |
|
|
| |
|
| |
|
| |

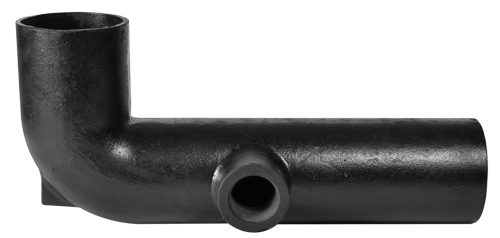

| CLOSET BENDS |
|
|
|
|
| ITEM No. |
SIZE |
DESCRIPTION |
| 749 |
3" x 4" x 6" x 16" |
Plain Reducing |
| 755 |
4" x 4" x 12" |
Plain |
| 758 |
4" x 4" x 12" |
Tapped |
| 750 |
4" x 4" x 14" |
Plain |
| 754 |
4" x 4" x 14" |
Tapped |
| 759 |
4" x 6" x 16" |
Plain |
| 760 |
4" x 6" x 16" |
Tapped |
| 780 |
4" x 16" x 16" |
Plain |
| 781 |
4" x 16" x 16" |
Tapped |
| 782 |
4" x 16" x 16" |
Plain |
|
| |
|
| |
|
| |

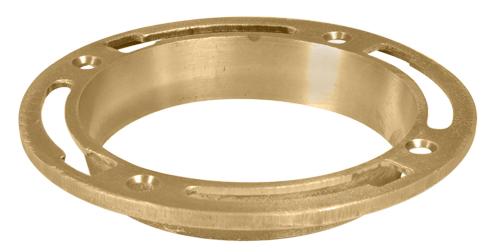

| BRASS CLOSET FLANGES |
| WITH CAULK CONNECTION |
|
|
| ITEM No. |
SIZE |
| 952B |
4" x 2-1/2" |
| 954B |
4" x 4" |
|
| |
|
| |
|
| |

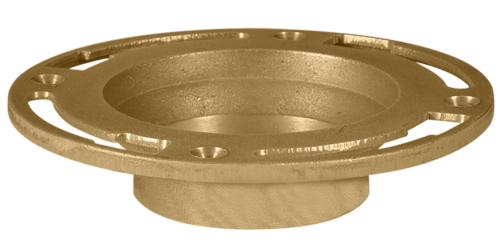

| BRASS CLOSET FLANGES |
| WITH LEAD CONNECTION |
|
|
| ITEM No. |
SIZE |
| 1920 |
4" x 3/8" |
| 1921 |
4" x 1-1/8" |
| (Deep Seal Lead Connection) |
|
| |
|
| |
|
| |
| BRASS 3" DWV |
| CLOSET FLANGES |
|
|
| ITEM No. |
DEPTH |
| 1924 |
7/8" Deep |
| 1925 |
1-1/2" Deep |
|
| |
|
| |
|
| |

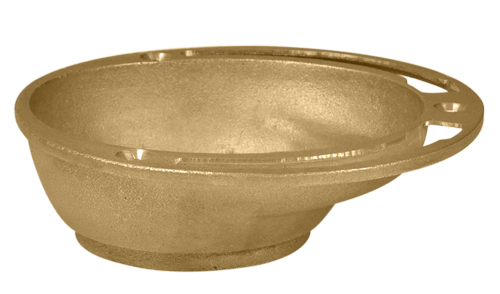

| BRASS OFFSET |
| CLOSET FLANGES |
| 1-1/4" offset. 1-5/8" deep. |
|
|
| ITEM No. |
SIZE |
| 1940 |
4" For Lead Pipe |
| 1945 |
3" DWV |
|
| |
|
| |
