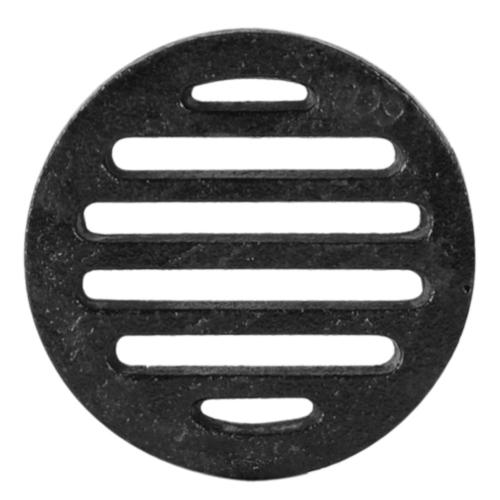

| FLAT SOIL PIPE STRAINER |
|
| To fit hub end of soil pipe. |
|
|
|
|
|
|
|
| ITEM No. |
SIZE |
DIAMETER |
| 600-2 |
2" |
3" |
| 600-3 |
3" |
3-5/8" |
| 600-4 |
4" |
4-5/8" |
| 600-5 |
5" |
5-7/8" |
| 600-6 |
6" |
6-3/4" |
|
| |
|
| |
|
| |

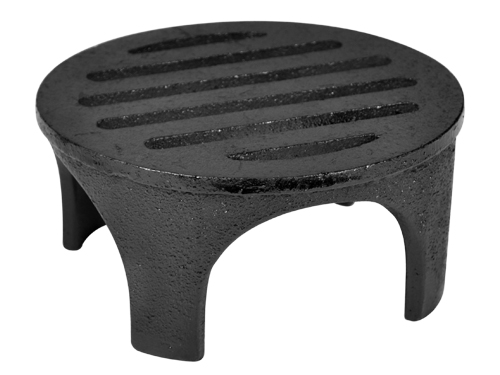

| SOIL PIPE STRAINER WITH LEGS |
| To fit hub end of soil pipe so top of |
|
|
| strainer will be flush with top of the hub. |
|
|
|
|
|
|
| ITEM No. |
SIZE |
DIAMETER |
| 610-2 |
2" |
2-5/8" |
| 610-3 |
3" |
3-3/4" |
| 610-4 |
4" |
4-3/4" |
| 610-5 |
5" |
5-3/4" |
| 610-6 |
6" |
6-3/4" |
|
| |
|
| |
|
| |

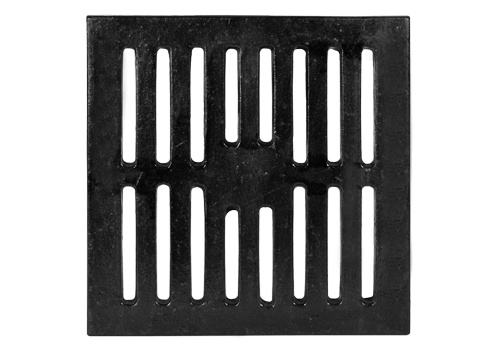

| SQUARE GRATES HEAVY BAR TYPE |
|
|
|
|
|
| ITEM No. |
SIZE |
BAR THICKNESS |
| 690 |
6" x 6" |
3/8" |
| 691 |
8" x 8" |
1/2" |
| 692 |
10" x 10" |
1/2" |
| 693 |
12" x 12" |
1/2" |
| 694 |
14" x 14" |
1" |
|
| |
|
| |
|
| |
| ROUND CAST IRON BAR STRAINERS |
|
|
|
|
|
|
|
|
PIPE SIZE |
| ITEM No. |
DIAMETER |
THICK. |
SOIL |
SEWER |
| 3300-3 |
3" |
3/8" |
2" |
|
| 3300-4 |
4" |
3/8" |
3" |
|
| 3300-5 |
5" |
3/8" |
4" |
4" |
| 3300-6 |
6" |
1/2" |
5" |
|
| 3300-7 |
7" |
1/2" |
6" |
5" |
| 3300-8 |
8" |
5/8" |
7" |
6" |
| 3300-10 |
10" |
3/4" |
|
8" |
| 3300-12 |
12" |
3/4" |
|
10" |
|
| |
|
| |
|
| |
| LIGHT ROUND STRAINERS |
| FOR DRAINS AND CESSPOOLSÂ |
|
|
|
| ITEM No. |
DIAM. |
DESCRIPTION |
| 660 |
4-1/4" |
Strainer |
| 660A |
4-3/8" |
Strainer with bell |
| 660B |
4-1/2" |
Strainer |
| 661 |
4-1/2" |
Strainer with bell |
| 662 |
4-5/8" |
Strainer |
| 662B |
4-7/8" |
Strainer Hinged and Bell |
| 663 |
4-7/8" |
Strainer |
| 663A |
5" |
Strainer |
| 664 |
5-3/8" |
Strainer |
| 664A |
5-1/2" |
Strainer |
| 665 |
5-3/4" |
Strainer |
| 665A |
5-7/8" |
Strainer |
| 665B |
6" |
Strainer |
| 666 |
6-3/8" |
Strainer |
| 666A |
6-1/2" |
Strainer |
| 667 |
6-5/8" |
Strainer |
| 667A |
6-5/8" |
Strainer with bell |
| 667B |
6-3/4" |
Strainer |
| 668 |
6-7/8" |
Strainer with bell |
| 669 |
6-7/8" |
Strainer |
| 669A |
6-7/8" |
Strainer Hinged and Bell |
| 669B |
7" |
Strainer |
| 669C |
7-1/4" |
Strainer |
| 670 |
7-1/2" |
Strainer |
| 670A |
7-3/4" |
Strainer |
| 671 |
7-7/8" |
Strainer |
| 671A |
8" |
Strainer |
| 671B |
8" |
Strainer Hinged and Bell |
| 672 |
8-3/8" |
Strainer |
| 672A |
8-1/2" |
Strainer |
| 672B |
8-5/8" |
Strainer Hinged and Bell |
| 673 |
9" |
Strainer |
| 673A |
9-3/8" |
Strainer with bell |
| 673B |
9-3/8" |
Strainer Hinged and Bell |
| 673C |
9-1/2" |
Strainer |
| 674 |
9-5/8" |
Strainer |
| 675A |
9-7/8" |
Strainer |
| 676 |
10" |
Strainer |
| 677 |
10-1/8" |
Strainer |
| 678 |
10-1/4" |
Strainer with bell |
| 678A |
10-1/4" |
Strainer Hinged and Bell |
| 679 |
10-1/2" |
Strainer |
| 680 |
10-7/8" |
Strainer |
|
| |
|
| |
|
| |

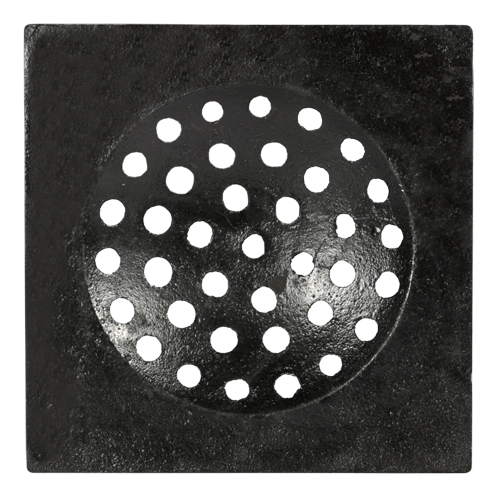

| CAST IRON CESSPOOL PLATES |
|
|
| ITEM No. |
SIZE |
| 380-6 |
6" x 6" |
| 380-8 |
8" x 8" |
| 380-10 |
10" x 10" |
| 380-12 |
12" x 12" |
|
| |
|
| |
|
| |

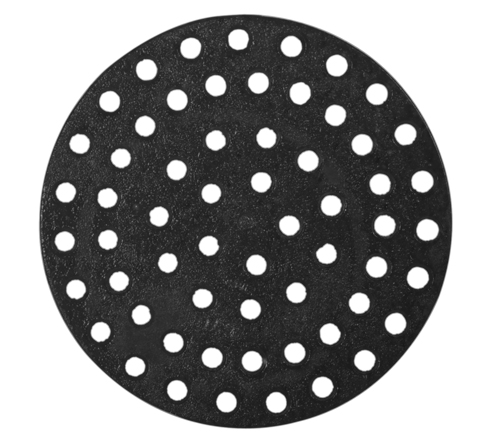

| SEWER STRAINER |
|
| Perforated type to fit hub end of soil pipe. |
|
|
|
| ITEM No. |
PIPE SIZE |
DIAMETER |
| 630-3 |
3" |
4-3/8" |
| 630-4 |
4" |
5-1/8" |
| 630-5 |
5" |
6-7/8" |
| 630-6 |
6" |
7-1/2" |
| 630-8 |
8" |
10-1/8" |
| 630-10 |
10" |
11-3/4" |
| 630-12 |
12" |
14-1/2" |
|
| |
|
| |
|
| |

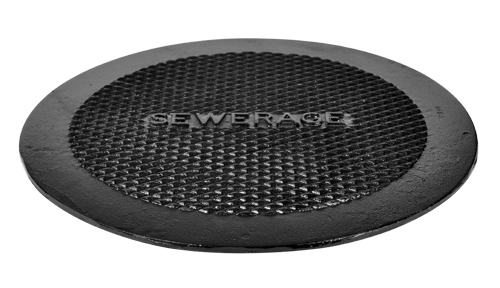

| SEWER COVER |
|
|
|
|
| ITEM No. |
SIZE |
| 685 |
18" |
|
| |
|
| |
|
| |

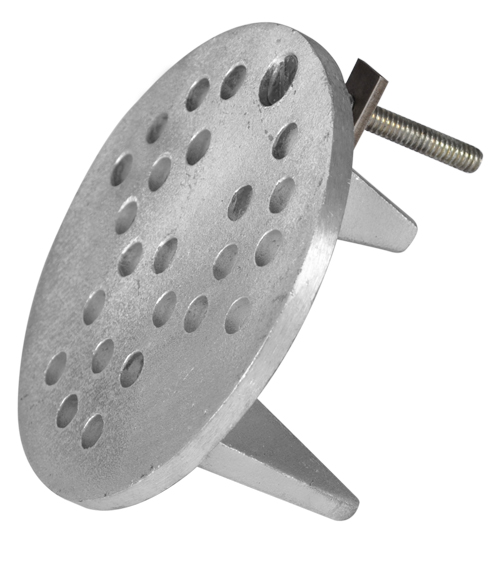

| ALUMINUM VENT STRAINERS |
| Buffalo, NY Style |
|
|
| ITEM No. |
SIZE |
| 989 |
6" |
| 990 |
4" |
| 990S |
4" Solid |
|
| |
|
| |
